詳細介紹

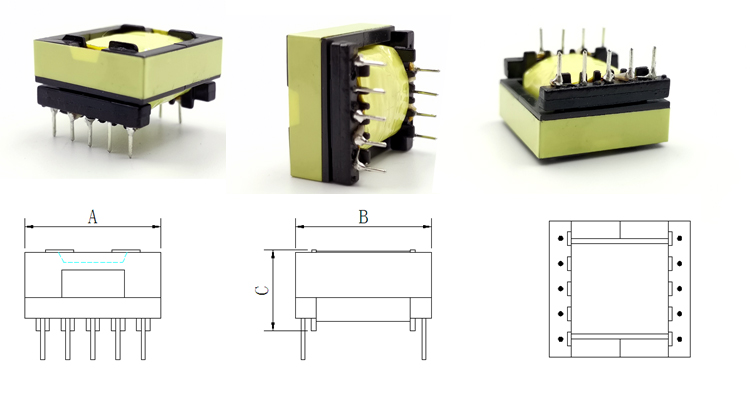

| 規格 | 封裝形式 | 長 | 寬 | 高 | 一次側排針 | 二次側排針 | 排距 | 針徑 | ||
| A | B | C | 數量 | 針距 | 數量 | 針距 | ||||
| EFD15-001 | 臥式插針 | 15.5 | 16.2 | 8.0 | 4 | 3.75 | 4 | 3.75 | 13.70 | ?0.60 |
| EFD15-002 | 臥式貼片 | 15.5 | 21.8 | 7.5 | 5 | 2.54 | 5 | 2.54 | 21.80 | SQ0.40*0.70 |
| EFD15-003 | 臥式貼片 | 15.5 | 21.8 | 7.5 | 5 | 2.54 | 5 | 2.54 | 22.50 | SQ0.40*0.70 |
| EFD15-004 | 臥式插針 | 15.5 | 17.2 | 7.5 | 5 | 2.54 | 5 | 2.54 | 17.20 | SQ0.40*0.70 |
| EFD15-005 | 臥式貼片 | 15.5 | 21.4 | 7.5 | 5 | 2.54 | 5 | 2.54 | 21.80 | SQ0.40*0.70 |
| EFD15-006 | 臥式貼片 | 15.5 | 21.8 | 7.5 | 5 | 2.54 | 5 | 2.54 | 22.50 | SQ0.40*0.70 |
| EFD15-007 | 臥式插針 | 15.5 | 17.2 | 7.5 | 5 | 2.54 | 5 | 2.54 | 17.20 | SQ0.40*0.70 |
| EFD16-001 | 臥式插針 | 16.5 | 20.2 | 9.0 | 5 | 3.00 | 2 | 10.00 | 17.50 | ?0.60 |
| EFD20-001 | 臥式插針 | 20.0 | 20.0 | 10.2 | 4 | 5.00 | 4 | 5.00 | 17.50 | ?0.70 |
| EFD20-002 | 臥式插針 | 20.0 | 20.0 | 11.0 | 5 | 3.70 | 5 | 3.70 | 17.50 | ?0.60 |
| EFD20-003 | 臥式貼片 | 21.5 | 21.0 | 9.5 | 5 | 3.75 | 5 | 3.75 | 25.00 | SQ0.40*1.00 |
| EFD25-001 | 臥式插針 | 25.5 | 25.0 | 12.0 | 5 | 5.00 | 5 | 5.00 | 22.50 | ?0.70 |
| EFD25-002 | 臥式插針 | 25.5 | 32.2 | 14.5 | 6 | 3.80 | 5 | 3.80 | 28.60 | SQ0.60*0.60 |
| EFD30-001 | 臥式插針 | 30.5 | 31.0 | 15.7 | 6 | 5.00 | 6 | 5.00 | 27.60 | ?0.80 |
